How to populate the Business Concept Map

Overview

The Business Concept Map in the Marketplace visualizes your organization bussiness terminology as an interactive graph with: schemes (big circles), concepts (small circles), relationships, definitions, synonyms, and linked Products.

This guide explains how to provide those concepts so they appear in the Business Concept Map.

info

The Business Concept Map is a feature that can be enabled via Marketplace configuration.

If disabled, the Marketplace UI will not display the map.

Prerequisites

Before following this guide, make sure you understand:

Knowledge Graph Manager (KGM)

KGM is the Witboost service that stores your organization's knowledge as a graph.

The Business Concept Map retrieves concepts directly from KGM by only querying for concepts and relations expressed through the SKOS vocabulary (see below).

tip

Learn more about: Knowledge Graph Manager (KGM)

warning

Make sure the configured KGM base url correctly points to the KGM service.

Source Adapter

A KGM Source Adapter is a small service you build that:

1. Reads your business concepts and relations from a source (a glossary, catalog, database, spreadsheet, etc.)
2. Converts them into a graph expressed in the JSON-LD format
3. Provides this JSON-LD to KGM so it can ingest it

tip

If you do not know how Source Adapters work, please read:

• What are KGM Sources and Source Adapters
• How to develop a Source Adapter

RDF

RDF (Resource Description Framework) is the standard data model used to represent information as a graph of resources and relationships.

In RDF, data is expressed as triples:

• Subject — the resource being described
• Predicate — the property or relationship
• Object — the value or another resource

Example (conceptually):

Concept ── hasDefinition ──► "A business term description"

RDF is the foundation on which vocabularies like SKOS (see section below) are built.

While KGM can ingest and store knowledge graphs expressed with any RDF-compliant vocabulary, the Business Concept Map relies on RDF semantics to traverse concepts, schemes, and relationships as a connected graph.

SKOS

SKOS (Simple Knowledge Organization System) is a widely adopted vocabulary for modeling glossaries and taxonomies via the RDF

The Business Concept Map currently uses SKOS fields to interpret and visualize concepts, meaning your Source Adapter should express concepts using SKOS if you want them to appear in the map.

tip

Learn more about SKOS on the official SKOS reference website

Supported Vocabularies

The Business Concept Map is designed to work with concept graphs expressed in RDF.

KGM can ingest and store concepts using any RDF vocabulary.

However, the Business Concept Map currently interprets concepts using the SKOS vocabulary to determine:

• concept labels
• definitions
• synonyms
• broader/narrower hierarchy
• related concepts
• scheme membership

Future releases may support additional vocabularies or custom mappings.

How to Provide Concepts to the Business Concept Map

The steps below assume SKOS because it is the vocabulary the Business Concept Map interprets today.

To make your business concepts appear in the Business Concept Map, your organization must create and register a KGM Source Adapter. The Source Adapter is responsible for supplying the SKOS JSON-LD concept graph to the Knowledge Graph Manager.

A complete process includes:

1. Create a Source Adapter
   Implement a service that retrieves your business concepts from their authoritative source (glossary, spreadsheet, DB, catalog) and converts them into a JSON-LD graph expressed using the SKOS vocabulary.

2. Expose the JSON-LD graph
   Your Source Adapter must expose an endpoint that returns the full SKOS concept graph in JSON-LD format.

3. Register the Source Adapter in KGM
   Once implemented, register your Source Adapter in the KGM configuration so KGM can ingest the SKOS concepts and make them available to the Business Concept Map.

4. Verify ingestion
   After registration, verify that the Source Adapter ingests correctly by checking that KGM contains your SKOS concepts through its SPARQL and search endpoints.

Following these steps ensures that the SKOS concept graph becomes available to the Business Concept Map for browsing, searching and linking Products.

note

The steps described in this section refer to the ingestion mode, where KGM ingests and stores the SKOS concept graph provided by your Source Adapter.

It is also possible to run the Business Concept Map in passthrough mode, where the Business Concept Map does not query for ingested concepts into KGM but instead sends all SPARQL and Search queries directly to a specific Source Adapter.

To enable passthrough mode, configure the KGM base URL to point to:

<base-kgm-url>/passthrough/<sourceId>

All Business Concept Map operations (SPARQL exploration, search, related concepts lookups) will then call that Source Adapter live, without ingestion.

What the Business Concept Map displays

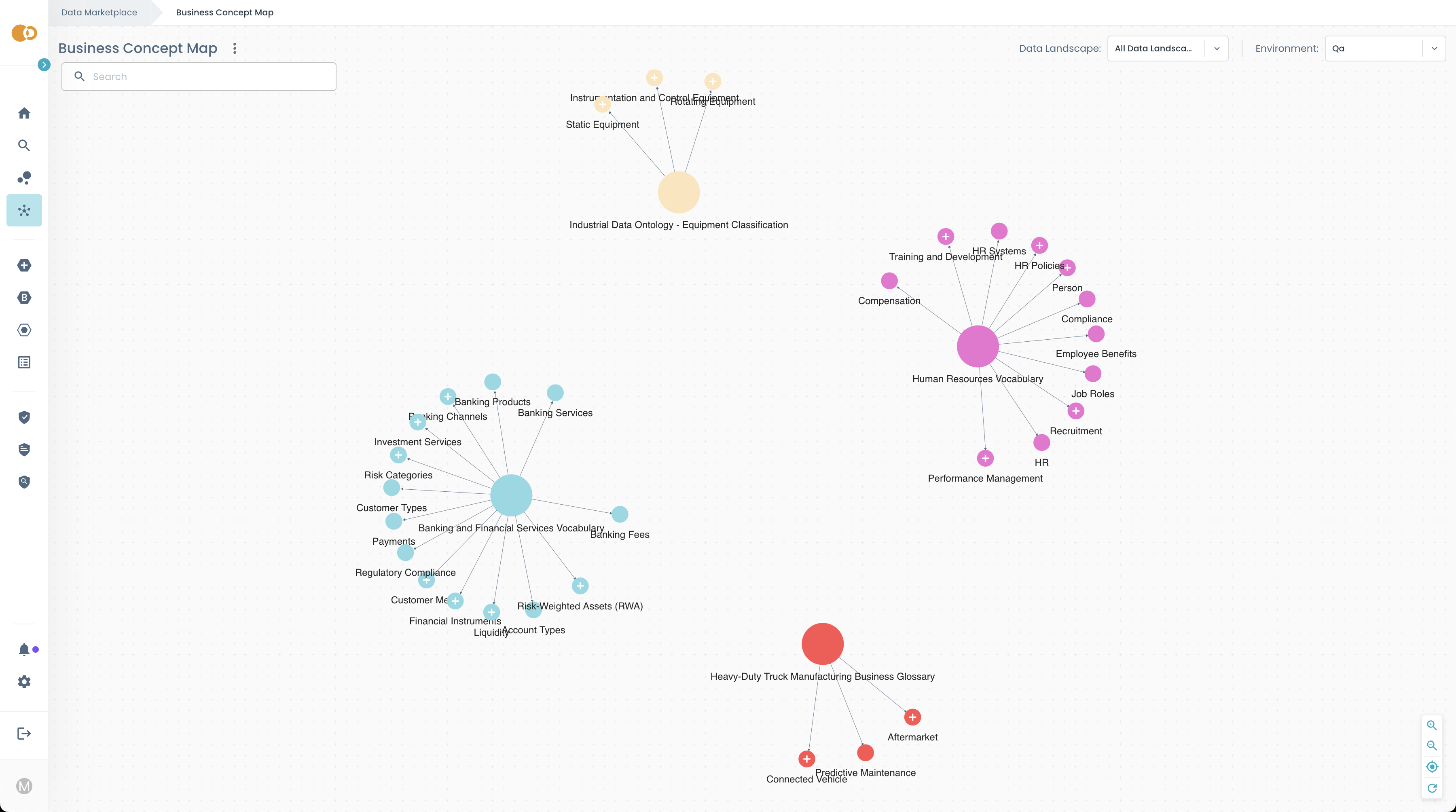

The visual elements composing the Business Concept Map are:

• Concept Schemes — big circles

  Examples: HRVocabulary, BankingVocabulary, TruckManufacturingGlossary

  A scheme represents a collection of related business concepts.

• Concepts — small circles

  Examples: Performance Management, Recruitment, Liquidity

  These are the business concepts inside each scheme.

• Relationships — lines

  • Hierarchy lines show broader/narrower relationships between concepts
  • Related lines show non-hierarchical associations between concepts

• Concept details panel

  When you click a concept, the left panel shows:

  • name
  • definition
  • synonyms
  • parent scheme
  • related concepts
  • related Products

How the Business Concept Map interprets SKOS

The Business Concept Map queries the KGM, through its SPARQL endpoint, to fetch SKOS concepts and relations and render them as follows:

Visual Element	SKOS Field	Meaning
Big dot (scheme)	skos:ConceptScheme	A group/vocabulary
Small dot (concept)	skos:Concept	A business term
Node label	skos:prefLabel	Main name shown in the graph
Definition	skos:definition	Explanation shown in details panel
Synonyms	skos:altLabel	Shown in details panel
Hierarchical lines	skos:broader / skos:narrower	Hierarchical structure
Related lines	skos:related	Non-hierarchical links
Concept scheme membership	skos:inScheme	Determines which scheme a concept belongs to
Related Products	Product descriptor match	Products in the Marketplace whose business concepts match skos:prefLabel of one or more concepts in the graph

Minimal SKOS JSON-LD Example (Copy & Adapt)

Below is a complete SKOS example that demonstrates everything needed for the Business Concept Map:

• multiple Concept Schemes (the big circles in the graph)
• multiple Concepts
• hierarchical relationships (skos:broader / skos:narrower)
• related concepts across different schemes (skos:related)
• synonyms (skos:altLabel)
• definitions (skos:definition)
• correct SKOS JSON-LD structure using a clean @context

You can use it as a template and replace labels/IDs with your own.

JSON-LD Example

{
  "@context": {
    // Define the skos prefix
    "skos": "http://www.w3.org/2004/02/skos/core#"
  },
  "@graph": [
    /* ------------------------------
       SCHEME 1: HRVocabulary
       ------------------------------ */
    {
      "@id": "https://example.com/schemes/hr",
      "@type": "skos:ConceptScheme",
      "skos:prefLabel": "HRVocabulary"
    },

    {
      "@id": "https://example.com/concepts/performance-management",
      "@type": "skos:Concept",
      "skos:prefLabel": "Performance Management",
      "skos:altLabel": ["Employee Performance"],
      "skos:definition": "Processes to ensure employee goals align with organizational objectives.",
      "skos:inScheme": "https://example.com/schemes/hr",
      "skos:narrower": [
        "https://example.com/concepts/employee-engagement-survey"
      ],
      "skos:related": ["https://example.com/concepts/liquidity-risk"]
    },

    {
      "@id": "https://example.com/concepts/employee-engagement-survey",
      "@type": "skos:Concept",
      "skos:prefLabel": "Employee Engagement Survey",
      "skos:broader": "https://example.com/concepts/performance-management",
      "skos:inScheme": "https://example.com/schemes/hr"
    },

    /* ------------------------------
       SCHEME 2: BankingVocabulary
       ------------------------------ */
    {
      "@id": "https://example.com/schemes/banking",
      "@type": "skos:ConceptScheme",
      "skos:prefLabel": "BankingVocabulary"
    },

    {
      "@id": "https://example.com/concepts/liquidity-risk",
      "@type": "skos:Concept",
      "skos:prefLabel": "Liquidity Risk",
      "skos:definition": "The risk that a company may not be able to meet short-term financial obligations.",
      "skos:inScheme": "https://example.com/schemes/banking",
      "skos:narrower": ["https://example.com/concepts/intraday-liquidity"],
      "skos:related": ["https://example.com/concepts/performance-management"]
    },

    {
      "@id": "https://example.com/concepts/intraday-liquidity",
      "@type": "skos:Concept",
      "skos:prefLabel": "Intraday Liquidity",
      "skos:broader": "https://example.com/concepts/liquidity-risk",
      "skos:inScheme": "https://example.com/schemes/banking"
    },

    /* ------------------------------
       SCHEME 3: EquipmentVocabulary
       ------------------------------ */
    {
      "@id": "https://example.com/schemes/equipment",
      "@type": "skos:ConceptScheme",
      "skos:prefLabel": "EquipmentVocabulary"
    },

    {
      "@id": "https://example.com/concepts/rotating-equipment",
      "@type": "skos:Concept",
      "skos:prefLabel": "Rotating Equipment",
      "skos:definition": "Mechanical equipment that rotates during operation, such as turbines or pumps.",
      "skos:inScheme": "https://example.com/schemes/equipment",
      "skos:narrower": ["https://example.com/concepts/industrial-pump"]
    },

    {
      "@id": "https://example.com/concepts/industrial-pump",
      "@type": "skos:Concept",
      "skos:prefLabel": "Industrial Pump",
      "skos:broader": "https://example.com/concepts/rotating-equipment",
      "skos:inScheme": "https://example.com/schemes/equipment"
    }
  ]
}

What this example covers:

• Three schemes → three large circles in the graph:
  • HRVocabulary
  • BankingVocabulary
  • EquipmentVocabulary
• Hierarchy (broader/narrower) inside each scheme:
  • Performance Management → Employee Engagement Survey
  • Liquidity Risk → Intraday Liquidity
  • Rotating Equipment → Industrial Pump
• Cross-scheme related concepts:
  • Performance Management ↔ Liquidity Risk (this creates a cross-scheme line in the graph)
• Concept details such as synonyms and definitions:
  • skos:altLabel
  • skos:definition
• Scheme membership via skos:inScheme which determines which "big dot" each concept appears under.

You can build your actual business concept map by modifying this example and returning the resulting JSON-LD from your Source Adapter.

How Search works in the Business Concept Map

The search bar in the Business Concept Map allows users to find concepts by typing natural language keywords.

Search results come directly from the KGM Search API.

For a Concept to appear in search results, two conditions must be met:

1. The Concept must contain searchable text

KGM indexes only literal fields.

For SKOS, this means you should provide at least one of:

• skos:prefLabel (required)
• skos:altLabel (synonyms)
• skos:definition (free-text description)

These fields are what users search over.

2. Your platform configurator must tell KGM which SKOS fields to index

KGM's search index is configurable.

To support Business Concept Map search, the configurator must enable indexing for the following SKOS predicates:

• http://www.w3.org/2004/02/skos/core#prefLabel
• http://www.w3.org/2004/02/skos/core#altLabel

If they are not included in KGM's search configuration, the Concept Map search bar will not find your concepts, even if they are shown in the graph.

tip

Refer to the KGM Configurations Section to understand how to correctly setup search predicates.

What Search Does

When a user types a query:

1. The Concept Map sends the query to KGM's /search endpoint
2. KGM returns a list of matching Concept IRIs (Internationalized Resource Identifiers), ranked by relevance
3. For each IRI, the Concept Map loads the Concept's SKOS metadata
4. The UI highlights or displays the matching Concepts

This makes it possible to discover Concepts without knowing their exact wording.

Best practices to make Concepts easily searchable

• Always include a clear skos:prefLabel
• Add synonyms using skos:altLabel
• Avoid cryptic or internal-only naming
• Ensure SKOS labels reflect what Product teams will use in descriptors (which also improves Product linking)

Search works best when Concepts are written in natural, business-friendly language.

How Products are linked to Concepts

The Business Concept Map can display Products that are associated with a selected Concept.

tip

Before proceding with this topic make sure you understand How Product developers integrate their Products with the Business Concept Map

Products are linked to Concepts through exact text matching between:

• the Business Concepts declared in a Product descriptor (e.g. Performance Management, HR)
• the Concept's preferred label (skos:prefLabel)

How it works

When a user selects a Concept and clicks Show Related Products in the details panel:

1. The Business Concept Map looks for Products in the Marketplace whose descriptor contains business terms.
2. It compares each business term with the Concept's skos:prefLabel.
3. Every Product whose term matches exactly the Concept's preferred label is displayed as a Related Product.

This allows users to quickly discover which Products are connected to a business meaning, and ensures consistent alignment between business terminology and technical assets.

Troubleshooting

These checks refer to SKOS fields, which the Business Concept Map uses for visualization.

Use this section to diagnose why concepts, schemes or relations may not appear in the Business Concept Map.

Concept scheme is not shown (big dot missing)

Possible causes:

• The scheme is not defined as @type: skos:ConceptScheme
• The scheme has no skos:prefLabel

A concept is missing from the graph

Possible causes:

• Missing or incorrect type (must be @type: skos:Concept)
• Missing skos:prefLabel
• The concept is not linked to any scheme via skos:inScheme or any parent concept via skos:broader

Hierarchy lines do not appear (no parent/child links)

Possible causes:

• Missing skos:broader or skos:narrower
• The relationship references the wrong concept ID

Related lines between concepts do not appear

Possible causes:

• Missing skos:related
• Related concept ID is incorrect or not present in the graph

Definition not shown in the left panel

Possible cause:

• Missing skos:definition

Synonyms not shown

Possible cause:

• Missing skos:altLabel

Concept appears but is not found via search

Possible causes:

• The concept has no textual fields (e.g., label, synonyms, definition)
• Your KGM configuration is not indexing the SKOS properties you use (ensure the configurator has enabled indexing of skos:prefLabel and skos:altLabel)

A Product does not appear as a Related Product for a business concept

Possible causes:

• The product descriptor contains business concepts that do not exactly match a concept's skos:prefLabel
• The product descriptor is missing the business concepts
• The concept's preferred label is misspelled or inconsistent
• The product is not published in the Marketplace in the selected Data Landscape and environment

Concept appears under the wrong scheme

Possible causes:

• Incorrect value in skos:inScheme
• The scheme's @id was mistyped

---

If issues persist, review your JSON-LD using the official SKOS reference or validate your JSON-LD.
